IEEE802.3z Industrial Gigabit Ethernet Switch , 8 *1000M Unmanaged Fiber Switch

Name: IEEE8023z Industrial Gigabit Ethernet Switch 8 1000M Unmanaged Fiber Switch
Brand: Mray
Price: 1 USD

IEEE802.3z Industrial Gigabit Ethernet Switch , 8 *1000M Unmanaged Fiber Switch Manufactures

Brand Name : Mray

Model Number : MR-I2GF8TP-SFP

Certification : CE, FCC, RoHs, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/week

Delivery Time : 1~2 days for samples

Packaging Details : 1pcs/box, 30pcs per standard export carton

Product name : Unmanaged 8 ports Industrial Gigabit POE+ Ethernet Switch 2 SFP ports

Data Rate : 10/100/1000Mbps

Fiber Port : 2*1000M SFP ports

POE Port : 8 *1000M POE ports

Working Temp. : -40°~ +85°C

Metal Case : Aluminum

Contact Now

Unmanaged 8 ports Industrial Gigabit POE+ Ethernet Switch 2 SFP ports

Description

Miray’s MR-I2GF8TP-SFP Series is a 8 ports 10/100Base-TX + 8 port 100Base-FX Hardened Ethernet switch. The Switch 8 TP ports and 2 fiber ports. TP (RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.

Features

8*10/100/1000Mbps POE port, 2*1000Mbps SFP ports
100m Transmission Distance,250m after use extend function
Compatible with IEEE802.3AF/AT
Whole Power:120W(52V 2.8A)
All port supported by MDI/MDIX auto flip and self negotiation
Supply 8pcs 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
Each port max. power supply reached 30W.
Low heat design, safe and reliable, high stability
Application: Wireless Access Point IP Camera IP Phone Computer Networks

Technical Specification

Product Name	Industrial Grade Network Switch
Product Model	MR-I2GF8TP-SFP
Port Definition	8*10/100/1000M Base-TX POE Ports + 2 gigabit SFP port
Network Protocols	IEEE802.3
	IEEE802.3u
	IEEE802.3z
	IEEE802.3x
Fiber wavelength	850nm/1310nm/1550nm
Transmission distance	Single-mode single-fiber: 20/40/60/80Km
Transmission distance	Single-mode dual-fiber: 20/40/60/80Km
POE Function	support
Overload protection	support
Undervoltage protection	support
Redundant protection	support
Reverse connection protection	support
Exchange level	layer 2
Bandwidth	64G
Packet forwarding rate	48Mpps
MAC	128K
MTBF	100000 hours
Shell	Corrugated high-strength metal housing
Protection level	IP40
Working Environment	Operating temperature: -40~+85℃
Working Environment	Humidity: 0%~90 % ( No condensation)
Standard	EMI: FCC CFR47 Part 15, EN55022/CISPR22, Class A EMS: IEC61000-4-2/3/4/5/6(ESD/RS/EFT/CS) IEC60068-2-6 IEC60068-2-27 IEC60068-2-23 IEEE802.3i IEEE802.3x IEEE802.3u
Product Dimensions (L×W×H)	143mm×101mm×44mm
Certification	CE FCC ROHS IOS
Software Function
Port Management	Enable/Disable Port
	Speed Duplex MTU Setting
	Flow-control
	Port Information Check
Port Mirroring	Support port mirroring
Port Speed Limit	Support port-based input/output bandwidth management
Port Isolation	Support port Isolation BPDU guard Root guard
Storm Suppression	Support broadcast storm suppression function, suppression number and limit type can be configured
Link management	Retracting sword speed can reach 1 second, support protection automatic recovery function
	Support port loopback monitoring and looped port control
	Support disable loop port time setting
	Support user hierarchical management and password protection, support ARP denial of service
	Support 802.1x authentication, centralized MAC address authentication, support dynamic APR detection
VLAN	Access
	Trunk
	Voice VLAN
	Number of VLAN 4K
	Support GVRP dynamic VLAN registration
	Support port, protocol, MAC-based VLAN partitioning
Spanning tree	Support STP spanning tree protocol
Spanning tree	Support RSTP Rapid Spanning Tree Protocol
Multicast	Support static addition, deletion IGMP-snooping
	Support MLD-snooping
	Support v1/v2/v3 dynamic multicast monitor
Qos	Support flow rate limit CAR
Qos	Support SP, WRR, SP+WRR

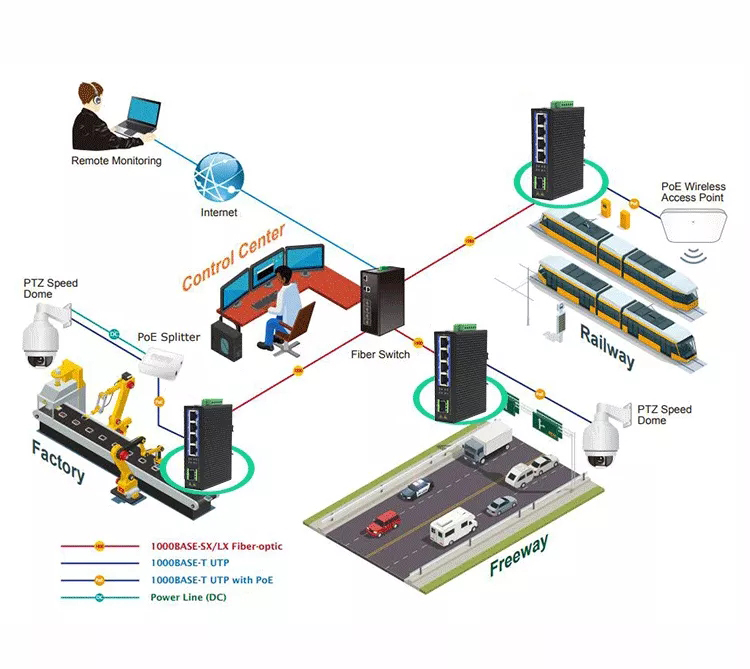

Application

IEEE802.3z Industrial Gigabit Ethernet Switch , 8 *1000M Unmanaged Fiber Switch

Dimension

IEEE802.3z Industrial Gigabit Ethernet Switch , 8 *1000M Unmanaged Fiber Switch

Installation

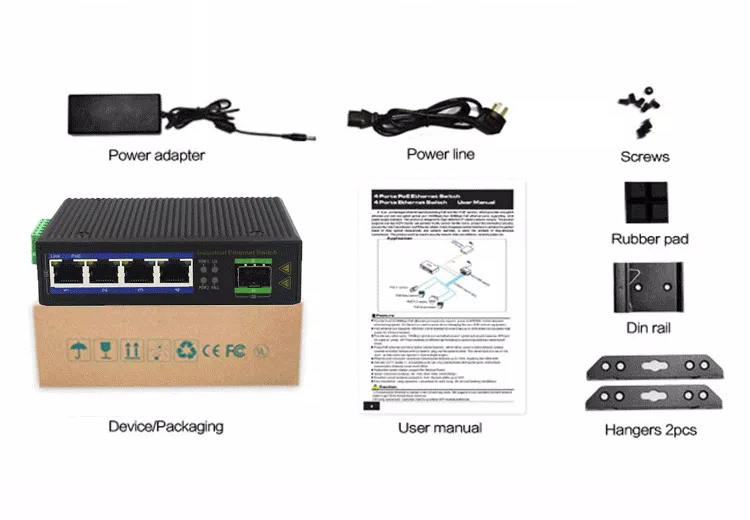

Product Packing

IEEE802.3z Industrial Gigabit Ethernet Switch , 8 *1000M Unmanaged Fiber Switch

Reliablity Assurance

IEEE802.3z Industrial Gigabit Ethernet Switch , 8 *1000M Unmanaged Fiber Switch

For more details, welcome to inquire us freely.
