POE Adapter 12v 2a 24w Wall Plug POE Injector Ethernet Adapter
Description
The PoE injector can realize simultaneous delivery of device network data and power via one Ethernet cable (Cat.5 or better). The output power of the PoE port is up to 24W, which is a single port Midspan (PoE injector) offers a cost effective, compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.So, it is a perfect choice for you to reduce the installation cost and improve the network performance.

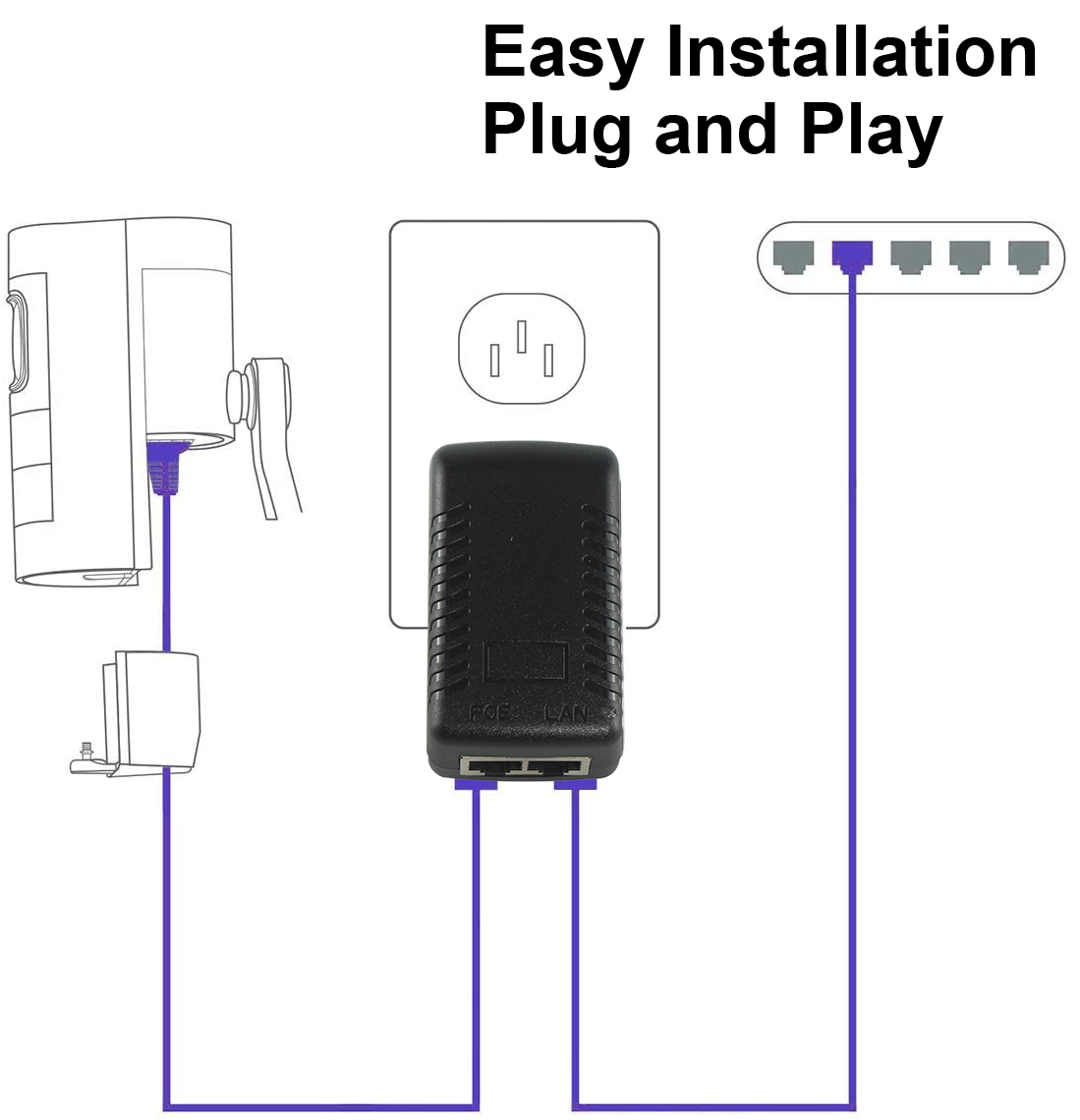

This POE Injector is a aperfect solution for applications where an electrical outlet may not be available, the injector adapter can be used to power PoE-enabled devices such as IP cameras or Wireless Access Points (WAPs). The compact, wall-mountable design makes it easy to install the adapter into areas where space is limited, and can be installed in seconds with no configuration required.
Application
Routers, switches, wireless APs, network telephones, industrial network terminals or IP cameras, massager, sos telephone, fetal monitor equipment, robot
Technical Specification
| Model No. | MR-PA1220 |
| Input |
| 1) Rated Voltage | range: 100~240VAC |
| 2) Frequency range: | 50/60 hertz |
| Leakage current: | < 0.25 mA at 250 V |
| Inrush current | < 40 A at 230 V |
| Efficiency | >82% (minimum) |
| AC current | 1.1 amperes (maximum) |
| Output |
| Data speedcurrent | 10/100M |
| Rated voltage | 12volts direct |
| Ripple | 480mVp-p |
| 4) Rated power | 24W |
| 5) Voltage tolerance | ±3.0% |
| 6) Setup, rising time | 500ms, 50ms at full load |
| 7) Hold up time | >5ms at full load |
| 8) Power out pin | midspan 4,5(+) 7,8(-) |
| 9) Rated current | 2 amperes |
| 10) Current range | 0~2A |
Environment:
1) Working temp: 0 ~+40°C
2) Working humidity: 20 ~90% RH non-condensing
3) Storage temp & humidity: -20~+85°C, 10~95% RH
4) Vibration: EN 61131-2
Protection
1) Protection Short circuit: YES
2) Over load protection: YES
3) Over power protection: YES
Safety & EMC
1) Standards: design refer to EN60950
2) Withstand voltage: I/P-O/P: 1.5KVAC, 5mA, 60S
3) Isolation resistance: I/P-O/P: 100M ohms/500VDC
Ordering Information
| Part Number | Description |
| MR-PA4805 | POE Module Power Supply, 48V0.5A, 24W |
| MR-PA2410 | POE Module Power Supply,24V1A, 24W |
| MR-PA2405 | POE Module Power Supply,24V0.5A, 12W |
| MR-PA1810 | POE Module Power Supply,18V1A, 18W |
| MR-PA1508 | POE Module Power Supply,15V0.8A, 12W |
| MR-PA1210 | POE Module Power Supply,12V1A, 12W |
| MR-PA1220 | POE Module Power Supply,12V2A, 24W |

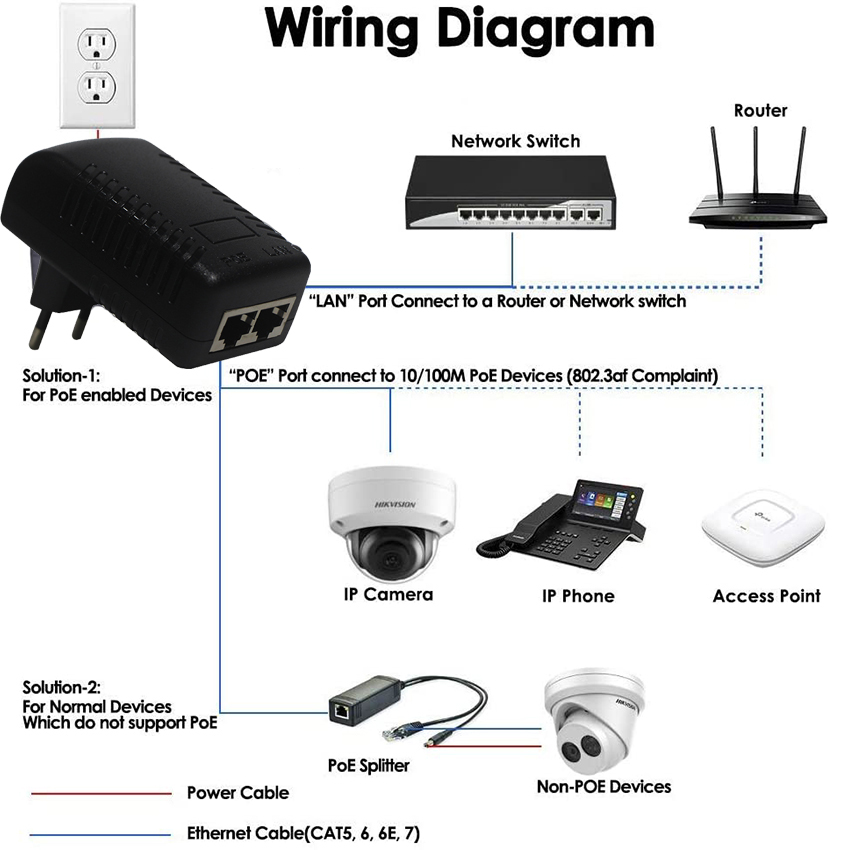

Application Environment

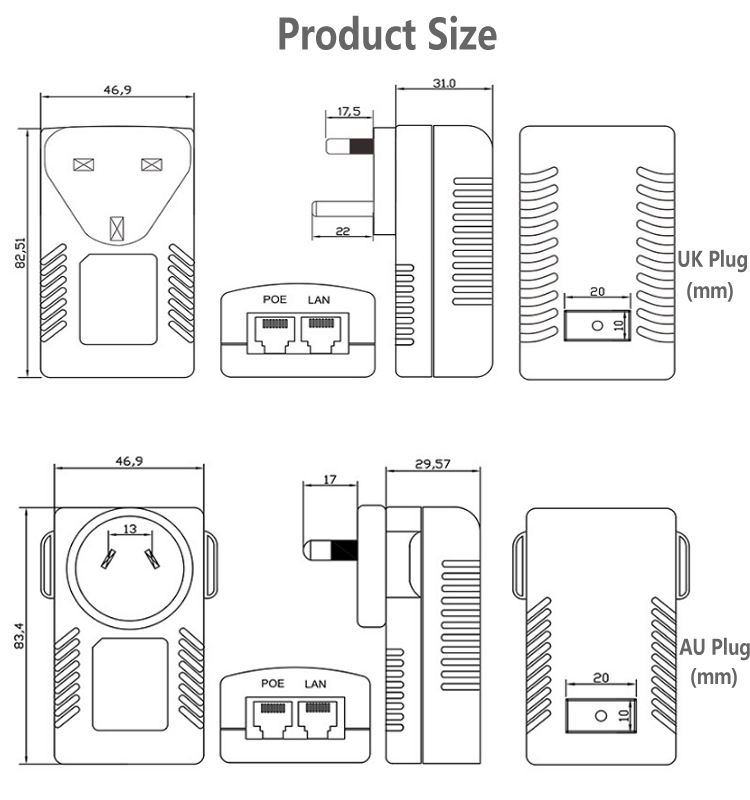

Dimension
Reliablity Assurance
For more details, welcome to inquire us freely.
